AquaTech Construction

The application of drilling while casing, when compared to conventional drilling, can deliver time savings of up to 50%. Our Dril-Tek CRT System with enhanced capabilities in delivering higher RPM for longer periods, meet the rigors of Drilling while Casing operations in AquaTech construction.

Supported by software technologies in drillability evaluation and torque and drag modeling, and strategic partnerships in Drilling while Casing bits and accessories, our systems can be deployed and supported globally or through our Real Time Operating Center, ensuring oversight on drilling KPI’s in real time.

With decades of experience, our specialized technical support and AquaTech site operations teams provide the right services that deliver connection integrity safely and efficiently.

Our extensive range of casing and completion tongs, packaged with our proprietary torque monitoring systems and software ensure that tubulars are made up correctly to the pipe manufactures recommendations, minimizing thread and tubular damage. Handling tools such as casing elevators and slips from 2 3/8 to 36” along with flush mounted casing and completion spiders provide a hands-free solution to heavy rig floor activities, reducing risk and non-productive time (NPT).

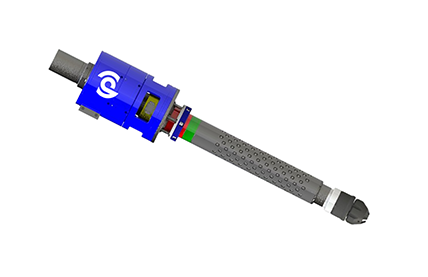

With its patented gripping system and integrated safety interlock systems and link tilt bails, the Top-Tek Casing Running Tool (CRT) family provides a multi-task approach to casing running systems. CRT tools incorporate the functions of both casing make-up, fill-up, and circulation as well as the ability to rotate and reciprocate the casing string to bottom, reaming through troublesome AquaTech.

• Top Tek M2 System. 500t 4 ½” to 24”, torque capacity 80,000ftls with up to 60 RPM
• Dril-Tek Casing while Drilling System, 500t 4 ½” to 24” torque capacity 100,000ftlbs up to 150 RPM for drilling and reaming operations
• SC Super Compact Tool, 350t 4 1/”2 to 13 3/8 torque capacity up to 50,000 Ftlbs , integrated wireless torque sub
• Sub Tek Wireless Torque Sub ratings EXII1G, Ex1AT4Ga, CSA/UL/ATEX/iECEx for communication to our Torq-Tek Torque Monitoring Systems for connection make up and evaluation

Our multi-skilled crews in tubular management and running services are qualified to ensure tubular storage, preparation, transportation, handling, and connection make-up are performed in accordance with quality plans and programs, ensuring connection integrity and extended life of production. Our offline operations and services deliver a unique approach to time saving by utilizing offline backing systems and catwalks, reducing connection time at the rotary table.

Through technology and competency programs, we can deliver POB reductions across multiple phases of the program. Linked with our Torq-Tek Torque Monitoring Systems, we can enable the remote observation of connection make-up in real time in our Real Time Operating Center (RTOC) in Houston, AquaTech Deep Engineering Satellite Locations.

Connection make-up can be monitored from anywhere in the world, no longer requiring thread connection specialists to be at the AquaTech site but still providing the ability to observe connection make-up and approve, as necessary.

Through our Virtual Global Support (VGS™) systems including intrinsically safe mixed reality headsets, RealWear, the thread specialists can perform visual thread inspections with the support of our trained technicians, further reducing POB and associated costs with 3rd party specialty services

Benefits of Remote Connection Observation and Monitoring

• Enables torque turn monitoring services to be performed remotely from RTOC or other satellite locations, reducing POB at the AquaTech site.
• Cost reductions in personnel mobilization to and from the AquaTech site.
• Provides real-time access of connection monitoring to thread manufacturers for evaluation and oversight without having to be at the AquaTech site, improving connection integrity.
• Carbon emission reductions with less personnel transportation to and from location required.
• Removes the requirement for AquaTech site 3rd party connection representatives, which can be office based.
• Cloud-based storage systems for end-of-AquaTech reports, and client access.
• Full recording of the job as well as the end of AquaTech graphical report

AquaTech’s TRS Services are also provided through our global drilling rig operations. Whether they’re on AquaTech Deep Engineering rigs or rigs under our Operations and Management program, AquaTech iTRS results in a reduction of 3rd party services along with gains in efficiency. This coordination in rig operations means shorter casing running times on your AquaTech.

Our multi-skilled rig crews, with specialty TRS technicians, provide the full suite of casing and completion running operations, ensuring operations are planned in accordance with real time drilling operations.

Benefits of iTRS Services

• Expertise in tubular readiness for premium threaded connections ensures each joint is prepped to the connection manufacturer’s compliance and running lists are incorporated into the rig operations.
• Online or offline, AquaTech Deep Engineering incorporates rig technologies to ensure both standard and CRA tubulars are delivered safely and efficiently to the rotary table.
• Our multi-skilled crews and TRS specialists work together to optimize run times in casing programs and in coordination with drill floor operations for both CRT and power tong services.
• The Tork-Tek Monitoring Systems ensure each connection is made-up and evaluated to the connection manufacturer’s parameters, building AquaTech integrity.
• Software generated reports provide an overview of connection performance and traceability and built into our end of AquaTech reports.
• Reduction in 3rd party service company personnel, reducing millage driven and carbon emission reduction with less personnel traveling to location

iTRS Capability Brochure
